Product Description

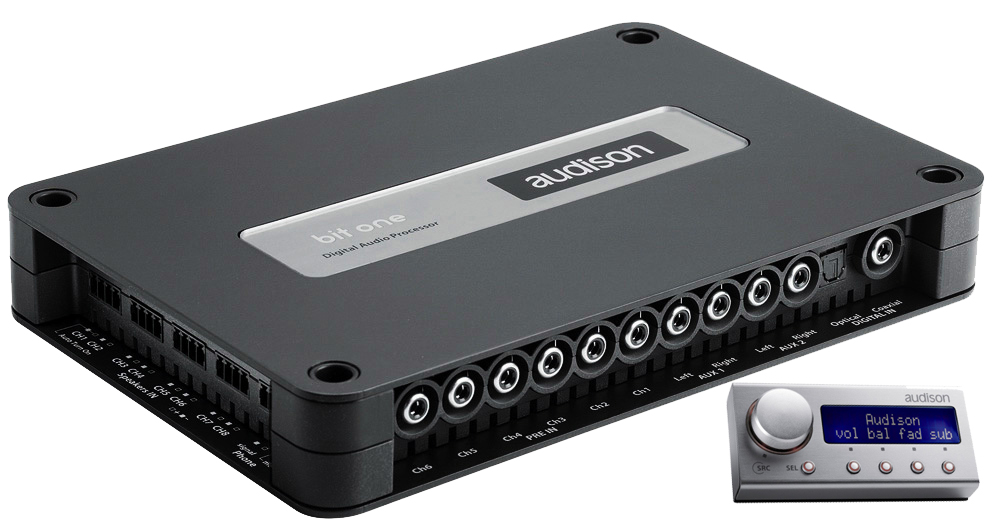

AUDISON - Bit One
AUDISON Bit one is a multi-function digital processor capable of interfacing with any analog and/or digital source, turning any ordinary system into one with very high-level performance.
Despite its compact size, the bit one is equipped with a powerful, latest generation 266 MHz / 32 bit floating point DSP microprocessor, working in real time on all the functions of the most complete systems.
Managed and configured by a simple and intuitive computer software, it is possible to make adjustments to improve the signal through each phase of its path; from input to output.
| Power Supply | |
| Power supply voltage | 11 ÷ 15 VDC |
| Idling current | 0.45 A |
| Switched off without DRC | < 0.5 mA |
| Switched off with DRC | < 1.8 mA |
| Remote IN voltage | 7 ÷ 15 VDC (1.3 mA) |
| RemoteOUT voltage | 12 VDC (130 mA) |
| Distortion - THD@1 kHz, 1 V RMS Output | 0.002% |
| Bandwidth | 4.5 ÷ 21 kHz |
| S/N Ratio @ A weighted | 102 dBA |
| Channel Separation (@1 kHz) | 77 dB |
| Input sensitivity (Low Level) | 0.3 ÷ 5 V RMS |
| Input sensitivity (High Level) | 1.2 ÷ 20 V RMS |
| Max Output Levels | 4 V RMS |
| Input impedance (Low Level) | 20 kΩ |
| Input impedance (High Level) | 5 kΩ |
| Inputs | |
| LowLevel (Pre In) | Ch1 - Ch6, AUX1 L/R, AUX2 L/R |
| High Level (Speakers In) | Ch1 - Ch8, Phone In |
| Coaxial and Optical | S/PDIFMax48 kHz/24bit, PCM |
| Crossover | |
| Linkwitz | 12 / 24 / 36 / 48 dB |
| Butterworth | 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB |
| Mode | Full / HiPass / LowPass /BandPass |
| Equalizer | |
| 31 Band | ISO 1/3 Oct, 20 Hz ÷ 20 kHz |
| Gain | ± 12 dB |
| Time Alignment | |
| Delay | 0 ÷ 22 ms in 0,02 ms steps (748 cm/294.5 inch) |
| Size | |
| WxHxD (mm) | 225 x 32,3 x 150 |
| Weight (kg) | 1,345 |
DRC - Digital Remote Control

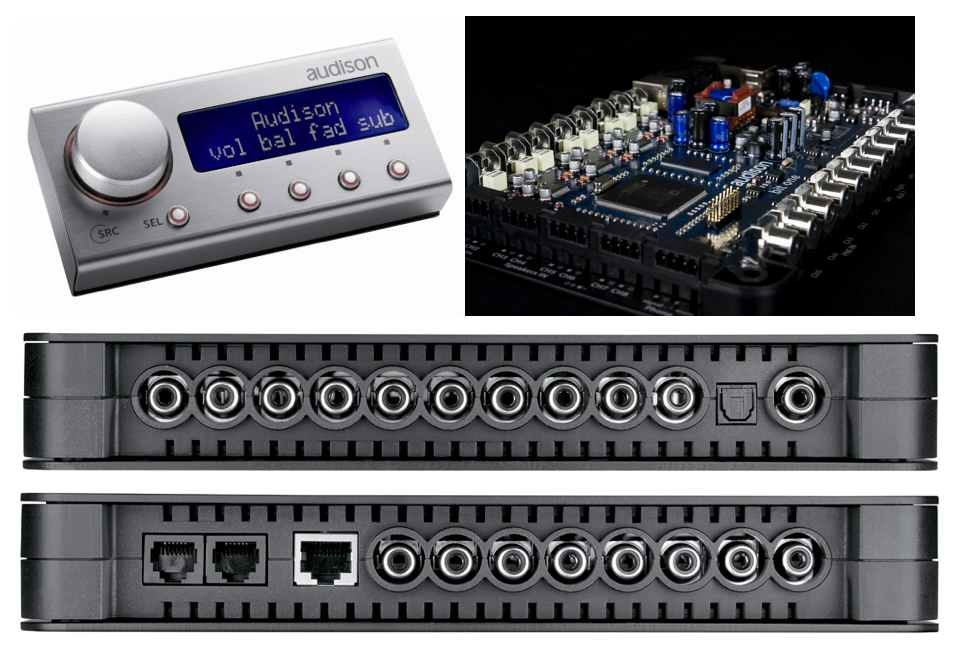

The DRC is the digital interface between the bit one processor and the user. The DRC mounted in the vehicle dashboard, provides access to control of the inputs and volume adjustments, balance, fader and subwoofer volume. Providing source selection between main, aux and optical inputs, it also provides four of the configurations created and saved by the bit one right at hand. The DRC also controls the functions of the Audison Thesis amplifiers when these are installed in the same system.
ECK DRCDRC Cable Extension kit for installations on especially long vehicles. Total length of the supplied cable with the extension is equal to 6,5 m / 225,90".
OP 1.5 • TOSLINK Optical CableOptical cable ending with TOSLINK connectors for S/PDIF digital audio signals. Cable length: 1,5 m / 59,05”.
OP 4.5 • TOSLINK Optical CableOptical cable ending with TOSLINK connectors for S/PDIF digital audio signals. Cable length: 4,5 m/177,16”
STA • F/F Socket TOSLINK adapter <Optical adapter to extend optical cables featuring TOSLINK connectors.
