Product Description

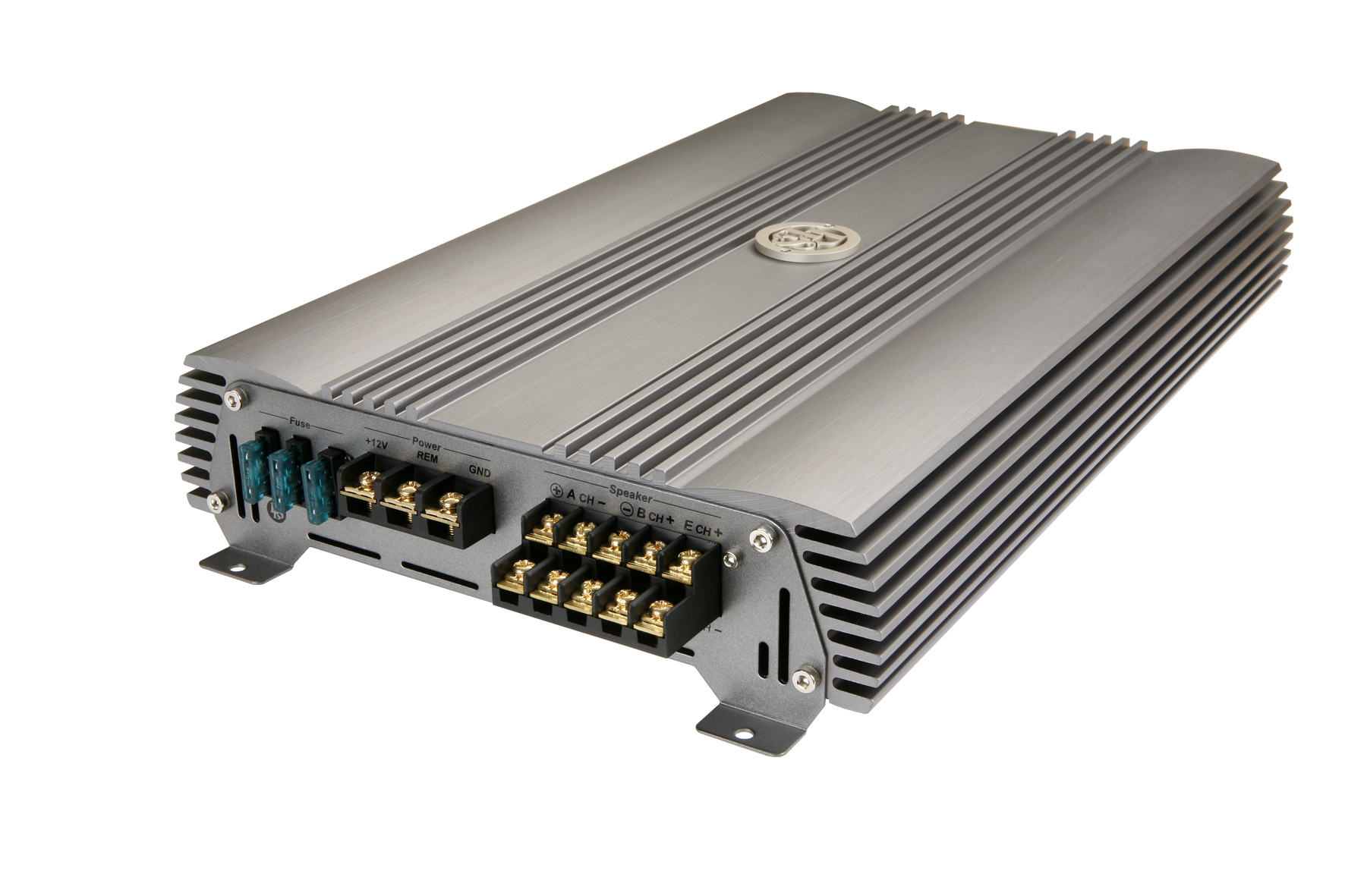

DLS Performance CA 51 (2012) - 4 x 50W + 1 x 170 W 5 CH Amplifier
DLS CA51 in new design 2012 CA51 in a new exclusive design, but the inside is of the same high quality as before.This is an amplifier suitable for full in-car entertainment systems. Nominal output of 4 x 50 Watts + 1 x 170 Watts on a mono sub channel.
- Built-in low pass and high pass filters.
- Variablephase shift control on the sub channel.
- Built-in protection circuits shut down the amplifier in the event of overloads.
- High level input with auto start.
-RMS output power @ 13,8 V, 20Hz - 20 kHz
| Number of channels | 5 |
| Amplifier class | AB |
| Mono bridge mode 4 ohm | 2 x 150 W RMS |
| Output power in 2 ohm | 4 x 80 W RMS |
| Output power in 4 ohm | 4 x 50 W RMS |
| Mono sub channel 2 ohm | 225 W |
| Mono sub channel 4 ohm | 170 W |
| Damping factor | > 100 |
| S/N ratio, A-weighted | > 100 dB |
| Frequency range | 10 Hz - 35 kHz |
| Input sensitivity | 0,25 - 5 V |
| Input impedance | > 10 kohm |
| Input impedance, high level | 100 ohm |
| Filters channel A & B | HP: 15-500 Hz. LP: 50-500 Hz / 05 - 5 kHz (x10) |
| Remote bass level control | No |
| Low level output | No |
| Remote phase shift control | No |
| Phase control for subwoofers | 0-180 degrees cont. variable |
| High level input with auto start | Yes |
| Power consumption (idle) | 1 A |
| Power consumption (max) | 90 A |
| Rec. power cable | Minimum 4AWG / 21 mm2 |
| Fuses | 3 x 30 A |
| Dimension (W x D x H) | 250 x 419 x 67 mm / 9,84 x 16,5 x 2,63" |
| Weight | 5,3 kg / 11,7 lb |
